Mostly Reliable Performance of Software Processes by Dynamic Control of Quality Parameters

[I wrote this just over four years ago for a conference I never went to. I'm submitting it now in the sprit of my "Disclose This" entry, in which I promised to disclose ideas that I'd like myself and others to be able to use, and not be prevented from doing so by software patents.]

Abstract

We have a complex software application with a number of multi-media subsystem processes. We would like the application to meet certain minimum overall performance criteria. Many of the subsystem processes can be executed at varying quality levels, and these have various effects on system performance. The situation is complicated by the fact that system performance is also dependent on factors outside the software application itself (e.g., processor and network load from other applications). We apply a number of independently-operating standard industrial process-controllers to vary subsystem quality as needed so that performance criteria is met or exceeded when possible.

Summary

In our approach:

1. The quality parameters of individual subsystems are automatically controlled using standard control-system methodology (i.e., PID closed-loop controller), using various overall measured system performance metrics as the controller input.
2. We do not guarantee that the system performance never goes below target, but rather we adjust subsystem quality as needed to mostly meet system performance targets.
3. Each controller’s responsiveness in meeting a performance target is dictated by the controller’s tuning parameters. The standard control system technology is sufficiently self-adjusting that the tuning parameters are adequate for a wide range of machines.
4. The various quality levels are controlled by individual independently operating control loops, even if they are based on the same performance inputs. I.e., we treat a Single-Input/Multiple-Output system as a group of individual Single-Input/Single-Output systems.
5. Some subsystems have an effect on several performance metrics. We control the quality parameters of these systems by taking a worst value produced by PID on the multiple performance measurements operating in the same control loop. Thus these loops each act as a simple Multiple-Input/Single-Output controller.

• Controller output is often pinned at an arbitrarily chosen best quality when the system has sufficient headroom, resulting in system performance that is far above the minimum targets.
• When output of a particular subsystem is pinned at an arbitrarily chosen worst allowed quality, other unpinned subsystems may continue to adjust their quality to effect performance.  Whenever all applicable subsystems are pinned at their worst allowed quality, further loading degrades system performance as though there were no controllers.

Interpretation of Input/Output and Measure/Controlled

measured value = a realtime performance measurement

= input to the controller

= the production “output” measurement of the whole system or “plant.”

Higher numbers mean “more output” and reflect a more desirable experience for users.

controlled value = a quality parameter or (inverse) “knob” that we can adjust

= output of the controller

= the input to the subsystem process or “plant”, which affects the plant output. (Hence “closed-loop” controller.)

The way error is defined in the literature, (setpoint – measuredValue,) a positive error means we need to crank up the plant to meet our performance target. So cranking up the controlled value knob means more plant output, and in our case, lower quality for the process being controlled. For example, in controlling animation, the controlled value is the number of rendering frames per animation update: higher numbers mean more overall system performance, but lower animation smoothness.  (It is tempting to invert this so as to be able to interpret the controlledValue numbers more intuitive as “quality” rather than “inverse quality.” So far I have chosen to be consistent with the literature and so that the different control loops can have similar looking software.)

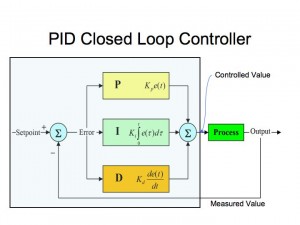

The Basic Loop

The basic loop in software is quite simple:

doControlLoop: lastError accumulation: lastAccumulation

    "KP, KI, KD, and DT are numeric tuning parameters.

     MeasuredValueSetpoint is a tunable frame rate target, e.g., 10."

    | error accumulatedError changeInError p i d computedValue |



    error := MeasuredValueSetpoint – self measuredValue.

    p := KP * error.  "term is Proportional to error"



    accumulatedError := error * DT + lastAccumulation.

    i := KI * accumulatedError. "term is Integral of error"



    changeInError := (error - lastError) / DT.

    d := KD * changeInError. "term is Derivative of Error"



    computedValue := p + i + d.

    self controlledValue: computedValue.



    (Delay forSeconds: DT) wait.

    self doControlLoop: error

          accumulation: accumulatedError.

You’ll notice that multiplying or dividing by DT could be incorporated into the KI and KD coefficients if DT is constant. In fact, some of our control loops do not have constant DT. (See “Iterating and Obtaining Samples”, below.) There are also a couple of ways in which the integral term could be written (e.g., with KI applying to the whole or just the new part). These different coefficient uses are referred to as “Ideal Form” and “Standard Form” in the control-systems literature.

Variations on the Basic PID Control Loop

Pinning the Control Knobs

In industrial control systems, the controlled value can be any computed value, but the physical limitations of the plant will effectively provide limits. In our software system, we need to explicitly cap these parameters ourselves:

computedValue := p + i + d "this part is as before, adding…"
                   min: MaxControlledValue
                   max: MinControlledValue.

The Min and MaxControlledValue act as “pins” on our quality control knobs. For example, when controlling the number of rendering frames per animation update, we have a MinControlledValue of 1, and a MaxControlledValue of 10.

These caps are important: We don’t really want performance to be at our MeasuredValueSetpoint most of the time.

• We want more if possible. So rather than letting quality get “better” and better to use up performance, we pin our inverse-quality knob with MinControlledValue.  For example, in animation, we don’t need less than one rendering frame per animation update (i.e., it would be silly to update the animations faster than overall rendering). So when there’s plenty of headroom in the system, we expect each computedValue to be pinned at MinControlledValue and our measuredValue to be higher than our MeasuredValueSetpoint.  Thus we hope that most of the time, the control loops are not even operating! They just kick in when they need to.
• There comes a point at which it isn’t worth further degrading the quality of some particular subsystem process.  If we’re still not meeting performance requirements at that point, it is really time to look elsewhere. So we also have a MaxControlledValue inverse-quality knob limit, above which the controller will not further attempt to improve performance. At that point, it is up to some other subsystem process controller to help out, or else the measured performance value will continue to degrade.

Anti-Windup

For various reasons, the system might not respond for a while: the tuning might respond slowly, the entire system might be paused, etc. The integral term is much like a spring that cand be wound up, and this can result in the accumulation of a large error that takes a while to work off – especially with our MaxControlledValue pin. So we include what is called an “anti-windup provision” in the literature:

accumulatedError := measuredError * DT + lastAccumulation
                       "the above is as before, adding…"
                       min: 10*MeasuredValueSetpoint

 max: -10*MeasuredValueSetpoint.

Deadband

In the controllers we have made so far, the output varies smoothly enough. However, some controllable subsystem knobs should not be constantly changing. For example, we might make an “encoding indicator” knob that uses one kind of video encoding if the controlled value (video encoding frame rate) is between, say, 1 and 2, another if it is between 2 and 4.5, and a third if it is between 4.5 and 10. We don’t want to change encodings too often, so it may become necessary to add what is called a “deadband limit” on the controlled value:

(computedValue - self controlledValue)abs > DeadbandLimit

    ifTrue: [self contolledValue: computedValue].

MISO

Some quality controls affect multiple performance characteristics, and so we must consider multiple measured value controller-inputs in computing a single inverse-quality knob controller-output (MISO).



For example, consider the frame rate at which a participant’s Web camera is injected into the computation:

1. The more frames to be encoded, the more that participant’s processor will get loaded.
2. The more frames sent on the wire, the more that participant’s packets may be delayed from throttling by network management.
3. We really need to know if we’re slowing down other folks, but we do not yet include such feedback between participants. Instead, we use camera output bandwidth as a proxy indicator of how much damage we may be doing to other participants’ performance. Note that the bandwidth usage is not an easily computable function of frame rate, as it depends on how much the actual image is moving around between any two frames.



We handle this by computing a  computedValue1, computedValue2, etc. within the same control loop.  Each measuredValueN is a different performance measurement.

error1 := MeasuredValueSetpoint1 – self measuredValue1.

p1 := KP1 * error1.

...

computedValue1 := p1 + i1 + d1.

error2 := MeasuredValueSetpoint2 – self measuredValue2.

p2 := KP2 * error2.

...

computedValueN := pN + iN  + dN.

computedValue := ((computedValue1 max: computedValue2)

                        max: computedValueN)

                   min: MaxControlledValue

                   max: MinControlledValue.

Recall that the objective is not to stay at the minimum performance when we have sufficient headroom, nor to produce the absolute optimum quality for a given performance. The insight here it is realize that it is sufficient to merely use the worst result from the N computedValues in order to mostly keep all the N performance metrics at or above their targets.

Iterating and Obtaining Samples

The usual rule of thumb is to take your sample measurements about 10x faster than the response time you want. That is, if you want the system to adjust a process within, say, one second, then DT ought to be no larger than 0.1 seconds.

How the control loop actually runs varies with the subsystem being controlled. We currently write a different version of the basic “doControlLoop” method for each controller. For example:

• For controlling camera frame rate, we fork off a separate #doUpdateRate process whenever we setupCamera. This process has an explicit loop that does not exit until we destroyCamera. At the bottom of each iteration of the loop, we explicitly Delay for DT seconds.
• For animated figures, we have a single controller that controls overall number of rendering frames per animation update, used by all animated figures. The #doAnimationUpdateRate method is explicitly called once at the start of each rendering pass. Thus “dt” is 1/frameRate when animation is happening, and our purpose is to keep frame rate above 10fps. So “dt” is less than 0.1 seconds. Note that there is no separate control loop process here, as it happens serially with rendering.

The interpretation of assigning #controlledValue: varies. For the camera frame rate, the controller is a method for each QVideoCameraManager instance, and changing the controlled value alters the current frame rate of the camera it controls. For figure animation, changing a number of renderings per animation update figure used by all TAnimatedMesh instances.

The details of obtaining measuredValue also varies. Some controllers use counters that are shared across many subsystems, while others have individual counters. Some DT are such that we cannot be sure of a measured value to be counted on each iteration, and so it is necessary to use a moving window average (which reduces response time). The details are out beyond the scope of this paper. (But see QFrameRate, TWindowedStatistics, TTrafficCounter and QCounterRate.)

Tuning

In control-systems, “tuning the system” does not mean making it more efficient, but rather picking values for the coefficients KP, KI, and KD. Bad values will cause the measuredValue to not reach the setpoint, or to oscillate between values.  Particularly good values cause the measuredValue to stabilize at the setpoint more quickly.

In rocket science, you have to pick these before the spacecraft flies, but in our case, we get to experiment.

Our control loops all have a means of transcripting measuredValue, controlledValue, p, i, and d terms and so forth.  Of course, writing data to the screen effects performance, so this recording bulks up results (e.g., in batches of 40 iterations) and reports them in a batch. Even so, the first few results of each batch are affected by the previous report. (We probably should stop controlling for a while after each report.)

The coefficients, setpoints, and limits are implemented as class variables so that they can modified on the fly by a developer in order to observe the result of the change.

There are various techniques that have been written up. In general, one tunes one coefficient of one loop at a time. For example, unnecessary subsystems are turned off so that the system is operating at the MinControlValue for all other controllers. For the controller being tuned, a setpoint is chosen that is in the middle of the current range of values on the developer’s machine, in order to force the controller to operate in its non-pinned range.  (This is why we do not use the same global MeasuredValueSetpoint for each controller, even if they are the same value.)  Multiple inputs for a MISO controller are turned off by adjusting their setpoints out of the way, or turning their coefficients to zero.

The P term has the most impact in reaching the setpoint quickly, so KP is tuned first, with the other coefficients at zero.  The system might not be able to reach the setpoint with P alone – it may need I. So the goal at this stage is merely to make KP as high as possible without the result oscillating. One usually varies KP by decades until the criticial oscillating point is found, and then backing off to about 0.6 of that.

Then the I term is used to provide an offset to the computedValue that will allow it to reach the setpoint.

The D term is often zero. It can be used to dampen oscillations so that KP can be a little higher than it would otherwise be, for faster response time.

Precision is not required. If the figures are off a bit, it just takes a little longer to reach the setpoint after a disturbance, or the quality varies a bit more than it needs to. This is what allows us to encode parameters into the application distribution and have them work across a wide range of machines.

As changes are made within a subsystem, and in other subsystems that run simultaneously, we don’t expect the basic machinery to need changing, but we do expect that we should to re-tune from time to time.

Future Work

Experience

[Four years ago, I wrote that we need to gain experience with how this worked in practice. As it turns out, I checked the tuning for the next few releases, on a MacBook Pro and a weak Windows computer.  The tunings turned out to be very stable, rarely requiring adjustment. After a while, I stopped bothering to check.

Tuning Across Machines

We could develop some tools to quickly exercise each controller on a given test machine, to verify that the tuning is acceptable.

Tuning itself can be automated, and there are commercial tuning packages used in industry. However, the values proved to be stable enough that we never bothered.

SIMO and Interactions Between Controllers

We already have two controllers that both affect the same measured value – frame rate. This is a Single Input, Multiple Output system (SIMO). We don't want these controller outputs to interfere with each other such that they make adjustments (to different subsystems) that cause each other to oscillate or pin.

We think that this is unlikely if they have different response characteristics – different coefficients, and with different sets of multiple inputs going into the computedValue.

If it does happen, we will need the prioritization discussed next.

[It turns out that such a problem was never observed.]

Meta-Control of Limits

Even without oscillations or other bad interactions, we may find that we want more control over how one subsystem degrades compared with another.

A simple way to prioritize multiple controllers is to have them use different setpoints – one kicks in before another. We have not applied this yet to enough different quality knobs that this has become necessary.

When we do, we may find that we want to use different Min/MaxControlledValues when operating within different regimes. These parameters might be varied automatically by yet another controller.  The general field called “adaptive control” is difficult, but I think we can apply the same hierarchy of hacks recursively:

1. If there’s a conflict between between a specific set of tuned controllers, prioritize them by using different setpoints.
2. Resolve remaining conflicts among N controllers by breaking N-1 of them into a operating regimes bound by a Min/MaxControlledValue.  Define N-1 new meta-controller whose output determines the operating regime for the corresponding controllers.
3. By construction, this resolves conflicts among the N originally conflicting controllers, but may result in conflicts among some subsest of the N-1 new metacontrollers. If so, recurse.
